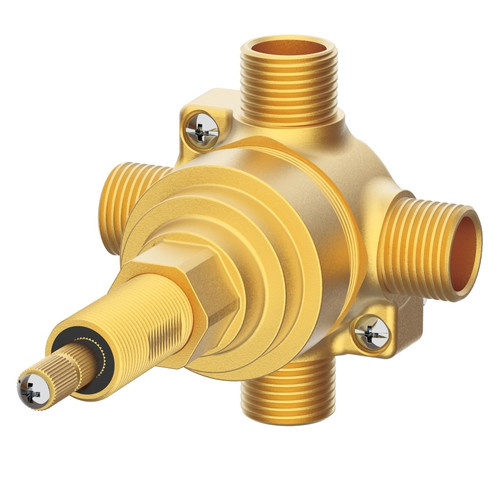

Gerber D130010BT Single Handle 1/2" 4-Port/3-Outlet Shower Diverter Rough Valve (Pause/Individual/Shared)

• Single Handle 1/2" 4-Port/3-Outlet Shower Diverter Rough Valve (Pause/Individual/Shared)
• Connection Type: 1/2" IPS/Sweat Connection
• Material/Material Construction: Brass Valve Body
• Stops: No
• Valve Type: Diverter
• Matches the installation depth range of Gerber's innovative and trusted Treysta® Tub & Shower Valve
• Integrated mounting holes allow for quick and easy installation
• 4 ports/3 outlets
• 8 positions including individual and shared flows: Pause/A/B/C/A+B/A+C/A+B+C
• Cartridge Type: Includes Cartridge
• Warranty: Covered by Gerber's limited lifetime warranty for manufacturing defects
• The Gerber® Single Handle 1/2" Shower Diverter Valve enables flow to be diverted to different shower components, such as from a showerhead to handshower, or to both at the same time in two of the three models. The valve body is heavy-duty forged brass and features 1/2" IPS/Sweat connections. Most often times used with Gerber's innovative and trusted Treysta® Tub & Shower Valve, installation is made easy due to the matching installation depth range and integrated mounting holes. There is one deep wall extension kit (D130011B) that is compatible with all three models. The valve is compatible with all current Gerber shower diverter trim kits. The reliable performance of the valve is backed by a lifetime limited warranty.
• Includes: Mounting Holes
• Sold Separately, Required: Use with D5609 Series Trim Kits
• Sold Separately, Optional: Use in Conjunction with Gerber's Treysta® Tub & Shower Pressure Balance Valve or a thermostatic valve to Provide Multi-Outlet Diversion; Deep Wall Extension Kit for 1/2" Shower Diverter Valve, D130011B
• cUPC: Yes
• Full manufacturer's warranty included

Click for specifications:Danze D130010BT
Click for installation guide:Danze D130010BT
